Our precision CNC punching services, with high-speed and heavy-tonnage capabilities, produce parts of exceptional quality with close-tolerance requirements.

Computer numerically controlled (CNC) punching is a plate or sheet metal fabrication process performed by a CNC punch press. Precision CNC Punching

The CNC punch press moves the material to the correct position below the punching ram. A variety of punching tools allow us to punch the desired shape according to drawing requirements. Our precision CNC punching services, with heavy tonnage and high-speed capabilities, produce parts of exceptional quality with close-tolerance requirements.

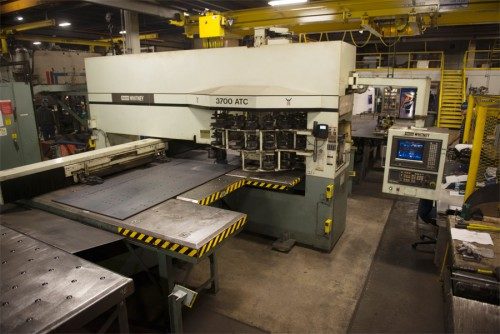

Through the use of our advanced 40-Ton CNC punching equipment with rotating ram, G.E. Mathis Company can process carbon steel, stainless steel, and aluminum, in sheet and plate forms, up to 60 inches wide and 1/2 inch thick.

Like all services performed at G.E. Mathis Company, we perform first article, in-process and final assessments, and also conduct dimensional testing with calibrated measuring equipment. Our inspection and testing procedures ensure we are always providing customers with the highest quality products available.

Precicion CNC Punching Video

In addition to being an ISO 9001:2015 certified manufacturer, G.E. Mathis Company can provide the following services:

  • PPAP (Production Part Approval Process) – All Levels
  • FAIR (First Article Inspection Report)
  • Capability Studies (Statistical Process Control)
  • CMRT (Conflict Minerals Reporting Template)

To learn more about our precision CNC punching capabilities, please click to expand the table below.

CNC Punching Capabilities

Fabrication Method CNC Punching & Plasma Cutting
Equipment 40-Ton CNC Punching (with Rotating Ram)
Materials Carbon Steel
Stainless Steel
Raw Material Forms Sheet
Material Thickness Up to .50″ thick
Material Weight 1,000 lb max
Width Up to 60″ wide
Tolerances Tightest in Industry
Testing Dimensional (with Calibrated Measuring Equipment)
Additional Services Metal Finishing
Mechanical Beveling
Weld Assembly
Mechanical Assembly
Production Volume Prototype to Production
Typical Lead Time 1 to 2 weeks

Additional Information

Industry Focus Agricultural
Contract Manufacturing
High-Quality Components
Intended Application Lifting Equipment
Truck Cranes
Wear Parts
Boom Components
Frame Rails
Industry Standards ISO 9001:2015 Certified
AWS-D1.1 Certified
File Formats AutoCAD Inventor

CNC Punching Services

More than a century of business has allowed us to provide precision CNC punching services to a vast range of industries, including:

While laser cutting is commonly used in today’s manufacturing processes, there are applications where this technology is either inefficient or impractical. In these applications, precision CNC punching is used as an alternative fabrication method. Our CNC punching capabilities allow us to efficiently complete fabrication for small to medium-sized runs of sheet metal components.

CNC punching capabilities are used to form sheet metal components for a variety of industries, including:

  • Aerospace
  • Military & Defense
  • Electrical Equipment & Electronics
  • Commercial Display
  • Oil & Gas
  • Transportation
  • Heating & Cooling
  • Packaging
  • Engineering

Components manufactured through CNC punching are used for a broad range of applications. For example, CNC punch-fabricated components are often used in the material handling industry, where they are found in lifting equipment, truck cranes, boom components, and frame rails. Wear parts for the mining and manufacturing industries are also created through CNC punching services. Enclosure cabinets used to protect heating and cooling equipment, electrical equipment, and electronic components are all fabricated using CNC punching.

Learn More

CNC punching is a vital manufacturing process for fabricating sheet metal components quickly and efficiently. This flexible machinery is capable of producing flat and three dimensional metal forms used in a variety of applications for numerous critical industries.

To learn more about G.E. Mathis Company and how we can use our various capabilities, including precision CNC punching to meet the needs of your next project, please contact us today. We look forward to working with you.
